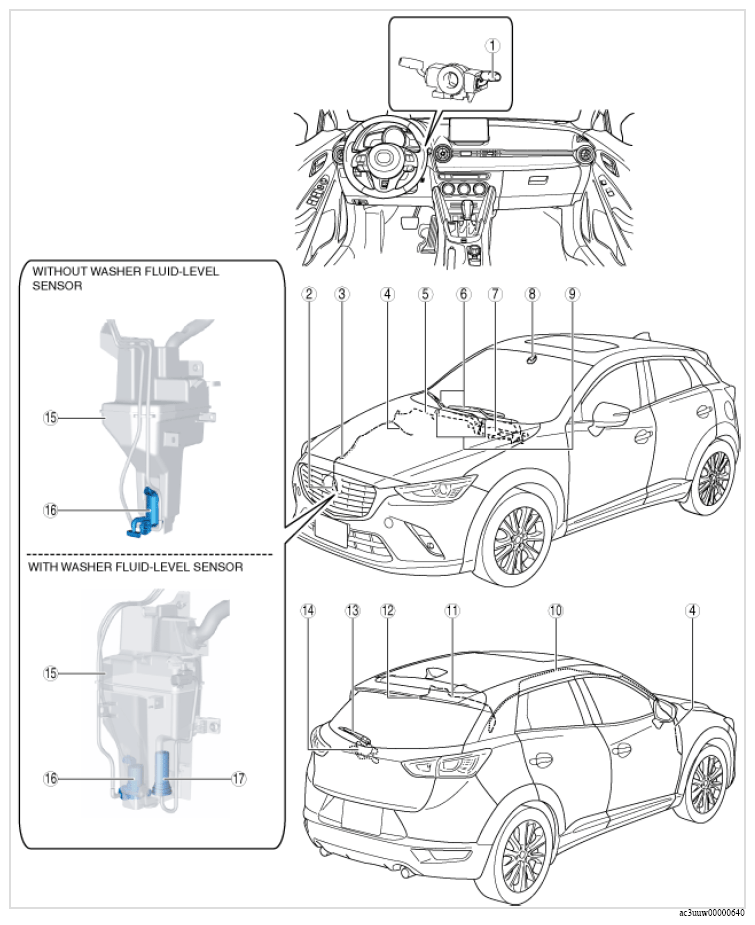

| 1 |
Wiper and washer switch
(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
(See WIPER AND WASHER SWITCH INSPECTION .) |
| 2 |
Windshield washer hose A
(See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .) |
| 3 |
Rear washer hose A
(See REAR WASHER HOSE REMOVAL/INSTALLATION .) |
| 4 |
Rear washer hose B
(See REAR WASHER HOSE REMOVAL/INSTALLATION .) |
| 5 |
Windshield washer hose B
(See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .) |
| 6 |
Windshield wiper arm and blade
(See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .) |
| 7 |
Windshield wiper motor and link
(See
WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER MOTOR INSPECTION .) |
| 8 |
Rain sensor (with auto wiper system)
(See RAIN SENSOR REMOVAL/INSTALLATION .)
(See RAIN SENSOR INITIALIZATION SETTING .) |
| 9 |
Windshield washer nozzle
(See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .)
(See WINDSHIELD WASHER NOZZLE ADJUSTMENT .) |
| 10 |
Rear washer hose C
(See REAR WASHER HOSE REMOVAL/INSTALLATION .) |
| 11 |
Rear washer hose D
(See REAR WASHER HOSE REMOVAL/INSTALLATION .) |
| 12 |
Rear washer nozzle
(See REAR WASHER NOZZLE REMOVAL/INSTALLATION .)
(See REAR WASHER NOZZLE ADJUSTMENT .) |
| 13 |
Rear wiper arm and blade
(See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
(See REAR WIPER ARM AND BLADE ADJUSTMENT .) |
| 14 |
Rear wiper motor
(See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
(See REAR WIPER MOTOR INSPECTION .) |
| 15 |
Washer tank
(See WASHER TANK REMOVAL/INSTALLATION .) |
| 16 |
Washer motor
(See WASHER MOTOR REMOVAL/INSTALLATION .)
(See WASHER MOTOR INSPECTION .) |
| 17 |
Washer fluid-level sensor (with washer fluid-level sensor)
(See
WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
(See WASHER FLUID-LEVEL SENSOR INSPECTION .) |
