Center Console Tray Removal/Installation

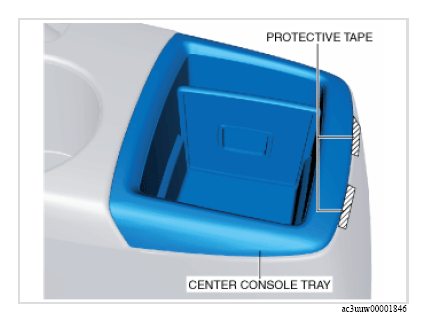

- To prevent scratches or damage, affix protective tape to the position shown in the figure.

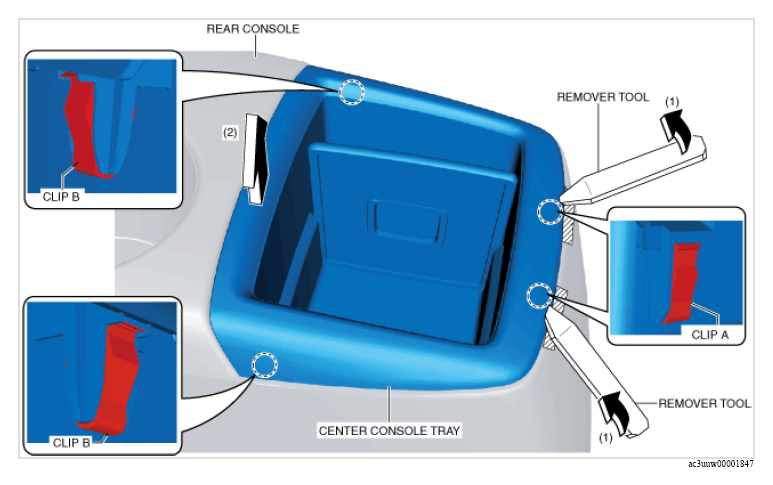

- Insert a remover tool into the positions shown in the figure, move it in the directions of arrows (1), and detach clips A from the rear console.
- Pull the center console tray in the direction of arrow (2) shown in the figure, detach clips B from the rear console and remove the center console tray.
- Install in the reverse order of removal.
