Front Door Trim Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

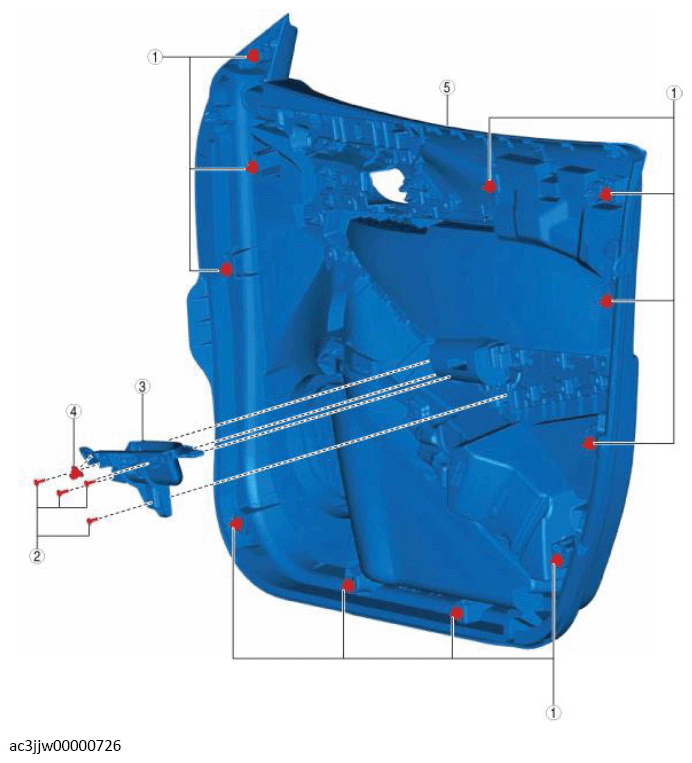

    G13152808Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Screw
    3 Pocket
    4 Grommet
    5 Front door trim
  2. Assemble in the reverse order of disassembly.
