Front Scuff Plate Removal/Installation: Installation

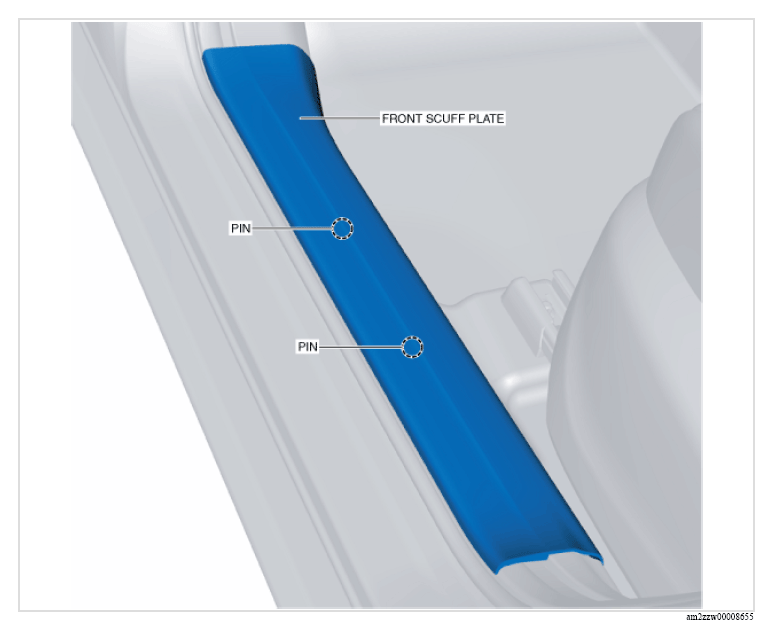

  1. Align the inner panel with the front scuff plate pins shown in the figure.
    G13152817Courtesy of MAZDA MOTORS CORP.

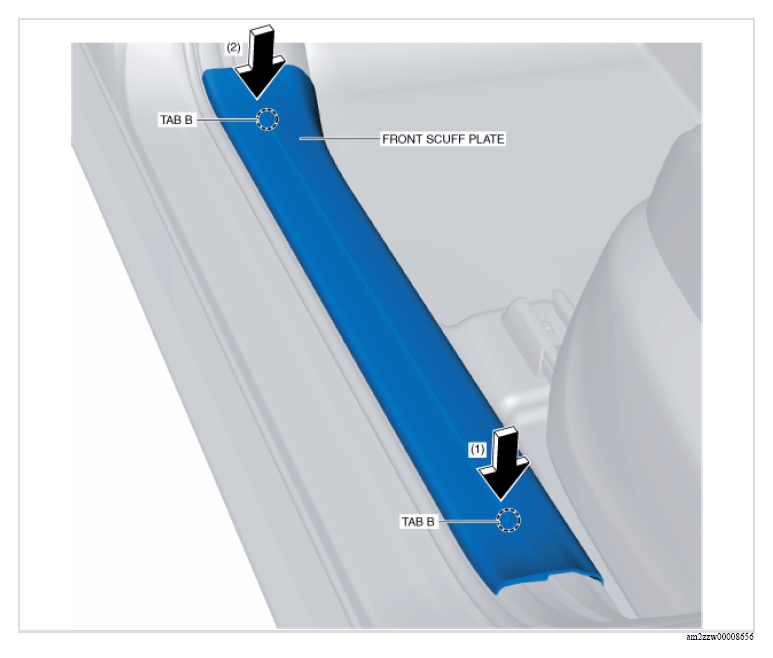

  2. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tabs B to the B-pillar lower trim.
    G13152818Courtesy of MAZDA MOTORS CORP.
  3. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tabs B to the front side trim.

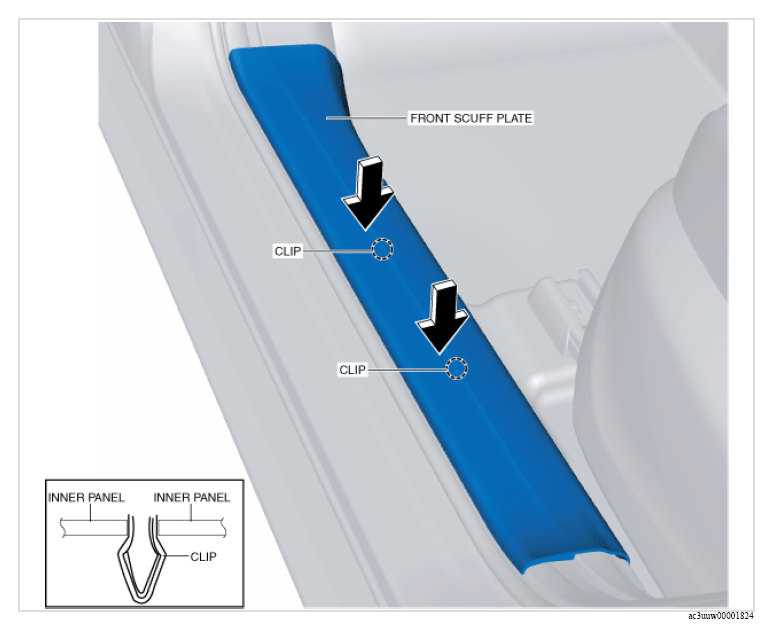

  4. Press the front scuff plate in the direction of the arrows shown in the figure and install the clips to the inner panel.
    G13152819Courtesy of MAZDA MOTORS CORP.
  5. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tabs A to the B-pillar lower trim.
    G13152820Courtesy of MAZDA MOTORS CORP.
  6. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tabs A to the front side trim.
