Front Scuff Plate Removal/Installation: Removal

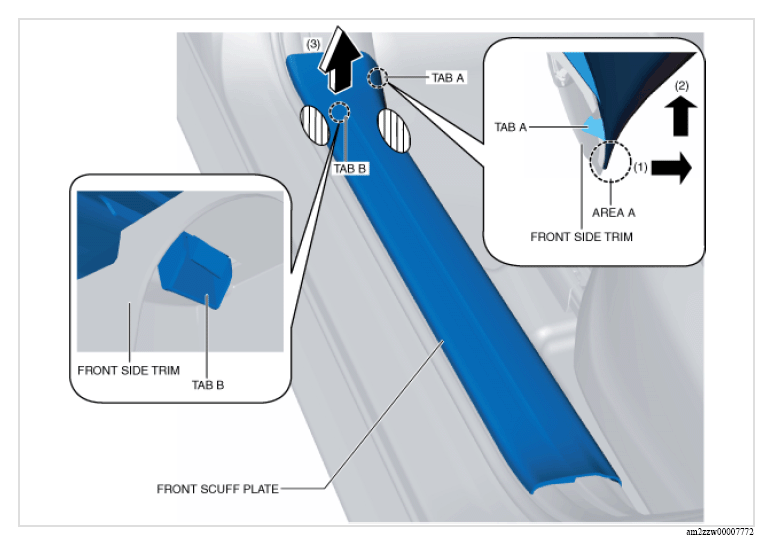

  1. Hold area A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the front side trim.
    G13152814Courtesy of MAZDA MOTORS CORP.
  2. Hold the shaded areas shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the front side trim.

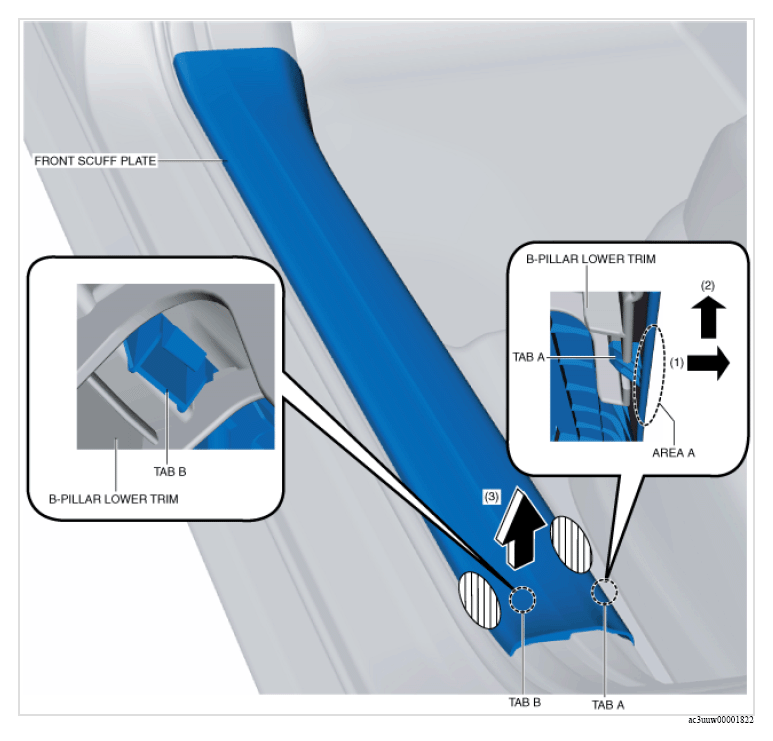

  3. Hold area A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the B-pillar lower trim.
    G13152815Courtesy of MAZDA MOTORS CORP.
  4. Hold the shaded areas shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the B-pillar lower trim.

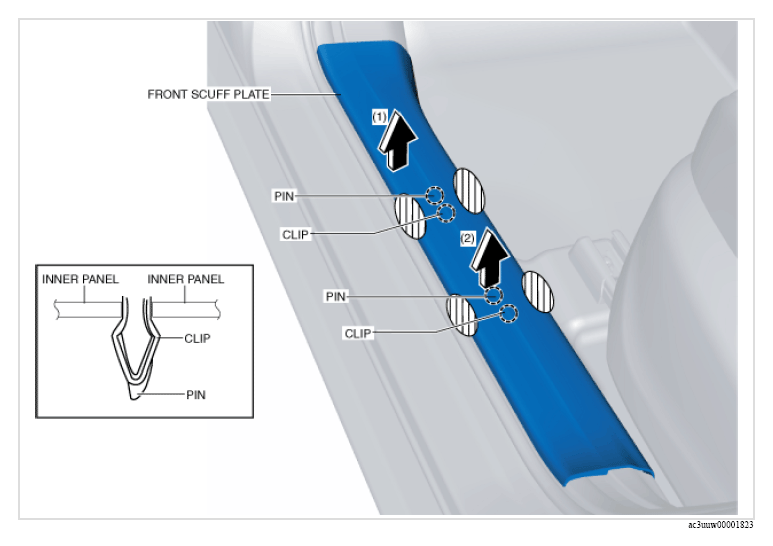

  5. Hold the shaded areas shown in the figure, move the front scuff plate in the direction of arrow (1), and detach the clips from the inner panel.
    G13152816Courtesy of MAZDA MOTORS CORP.
  6. Hold the shaded areas shown in the figure, move the front scuff plate in the direction of arrow (2), and detach the clips from the inner panel.
  7. Pull out the pins and remove the front scuff plate.
