Front Side Trim Removal/Installation
- Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Partially peel back the seaming welt.
- Remove the cap nut.
- Pull the front side trim out of the stud bolt.

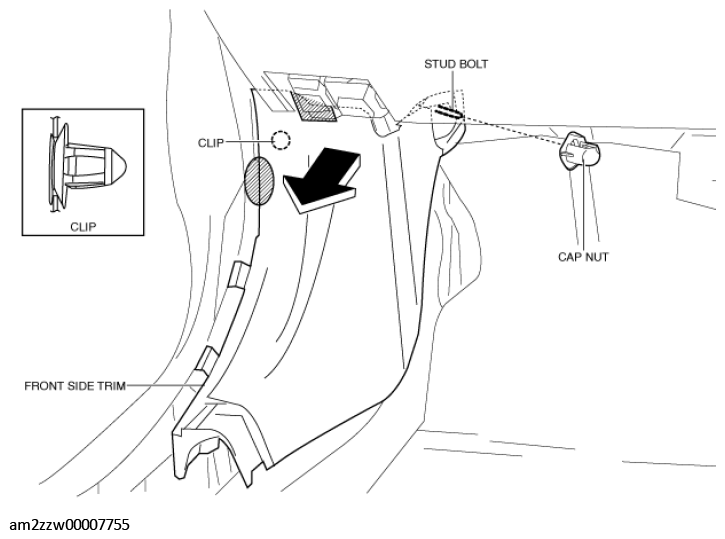

- Hold the shaded area shown in the figure, move the front side trim in the direction of the arrow, and detach the clip.
- Remove the front side trim.
- Install in the reverse order of removal.
