Switch Panel No. 1

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Open the glove compartment.
Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)

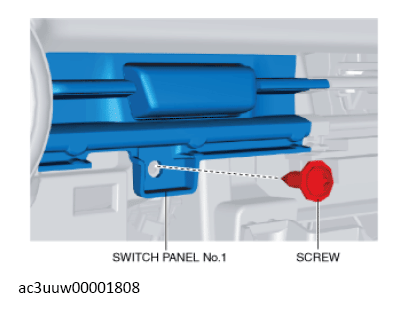

Remove the screw.

Courtesy of MAZDA MOTORS CORP.

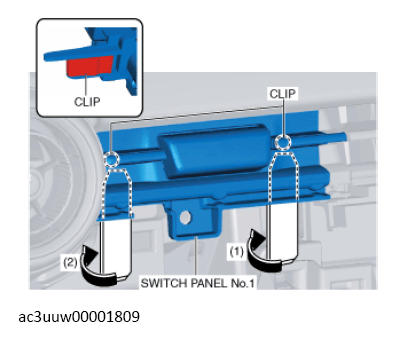

Move the remover tool in the order of arrows (1) and (2) shown in the figure and detach the clips from the dashboard.

Courtesy of MAZDA MOTORS CORP.
Disconnect the hazard warning switch connector and remove the switch panel No. 1.
NOTE:
- When replacing the switch panel No. 1, remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
