DSC HU/CM Component Removal Note

  1. Remove the cowl grill installation fastener. (See COWL GRILLE REMOVAL/INSTALLATION .)

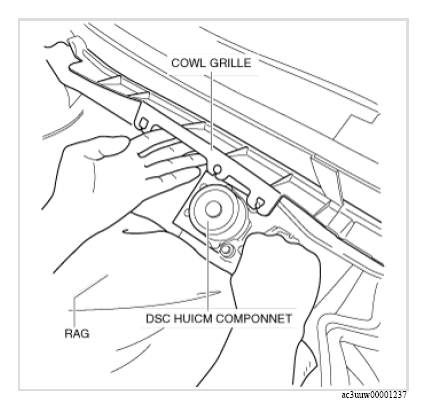

  2. Remove the DSC HU/CM component shown in the figure.
G13150388Courtesy of MAZDA MOTORS CORP.
