DSC HU/CM Connector Installation Note

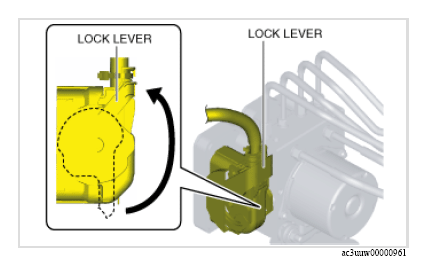

Connect the connector and pull the lock lever up in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
After connecting the connector, verify that the connector cover is completely pushed in.
