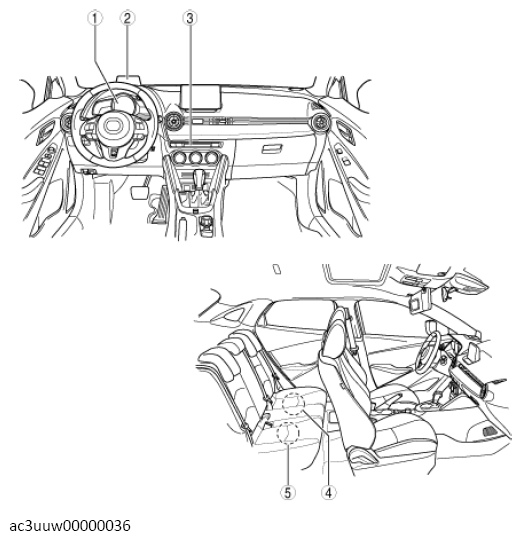

| 1 |
Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See INSTRUMENT CLUSTER INSPECTION .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
(See INSTRUMENT CLUSTER OPERATION RECORD .)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See INSTRUMENT CLUSTER DATA RESET PROCEDURE .) |
| 2 |
Active driving display (with active driving display)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
(See ACTIVE DRIVING DISPLAY INSPECTION .) |
| 3 |
Indicator unit
(See INDICATOR UNIT REMOVAL/INSTALLATION .)
(See INDICATOR UNIT INSPECTION .) |
| 4 |
Fuel gauge sender unit (main)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD] .)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [2WD] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [AWD] .) |
| 5 |
Fuel gauge sender unit (sub)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [AWD] .) |
