Coolant Control Valve Removal Note

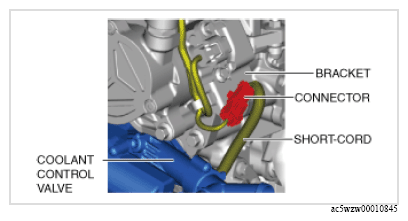

  1. Disconnect the connector shown in the figure.
    G13108165Courtesy of MAZDA MOTORS CORP.

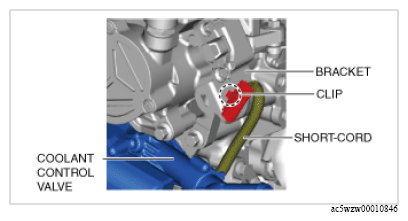

  2. Remove the clip shown in the figure.
    G13108166Courtesy of MAZDA MOTORS CORP.
  3. Remove the coolant control valve.
  4. When replacing the engine coolant control valve, remove ECT sensor No. 2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
