Heater Hose Installation Note
Heater Hose Installation Note

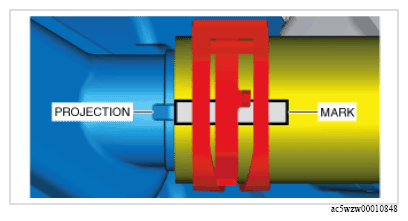

Connect the heater hose to the coolant control valve so that the projection position is aligned with the mark.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
