Coolant Reserve Tank Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

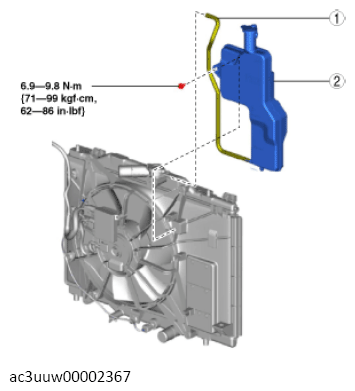

Fig 1: Coolant Reserve Tank Components With Torque Specification
G13149331Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Hose
2 Coolant reserve tank
(See Coolant Reserve Tank Installation Note .)
