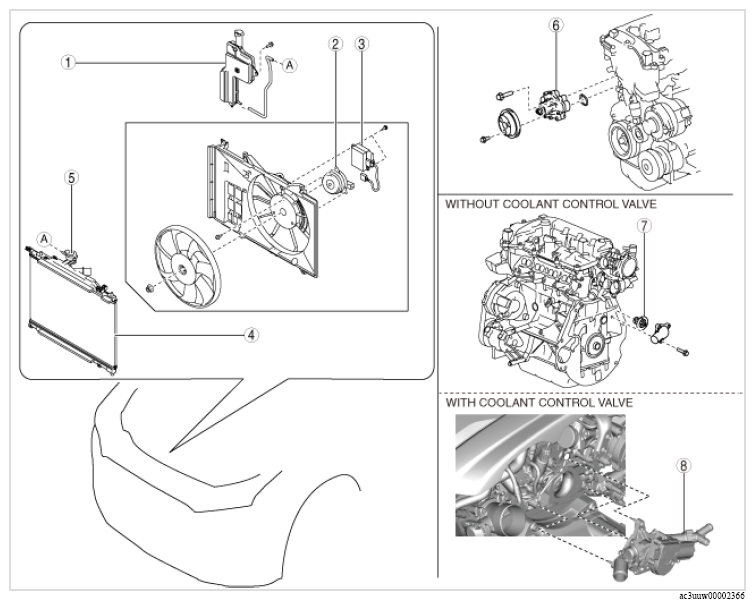

| 1 |
Coolant reserve tank
(See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G 2.0] .)
(See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 2 |
Cooling fan motor
(See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
(See COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.0] .) |
| 3 |
Fan control module
(See FAN CONTROL MODULE INSPECTION [SKYACTIV-G 2.0] .)
(See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2 0] .) |
| 4 |
Radiator
(See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G 2.0] .)
(See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0] .)
(See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0] .)
(See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 5 |
Cooling system cap
(See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G 2.0] .) |
| 6 |
Water pump
(See
WATER PUMP REMOVAL/INSTALLATION .) |
| 7 |
Thermostat (Without coolant control valve)
(See THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
(See THERMOSTAT INSPECTION [SKYACTIV-G 2.0] .) |
| 8 |
Coolant control valve (With coolant control valve)
(See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
(See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G 2.0] .) |
