Oil Cooler Removal/Installation
›
Oil Cooler Installation Note
Oil Cooler Installation Note

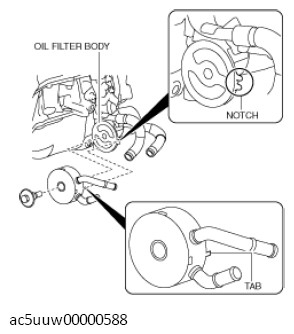

Install the oil cooler with the tab aligned with the notch of the oil filter body.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
