Oil Pump Driven Sprocket Installation Note

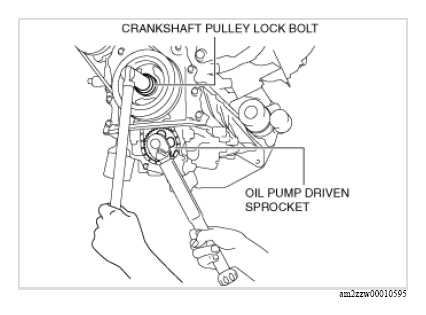

  1. Lock the oil pump against rotation as shown in the figure.
    G13149318Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pump driven sprocket.

    Tightening torque

    Silver bolt: 20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}

    Black bolt: 26-36 N.m {2.7-3.6 kgf.m, 20-26 ft.lbf}
