No. 1 Engine Mount (AWD): Notes

NOTE:

• When removing the No. 1 engine mount bracket B for AWD vehicles, perform the procedure with the transfer completely removed from the transaxle.

1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

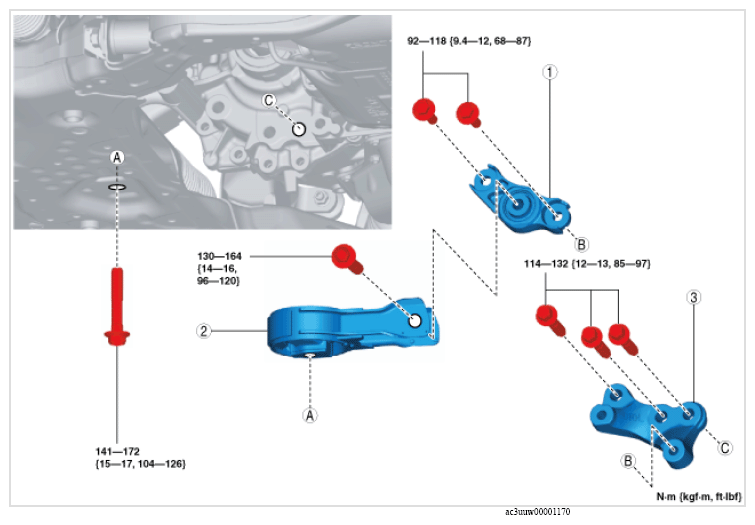

Fig 1: No. 1 Engine Mount (AWD) Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket A (See No. 1 engine mount installation note (AWD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
3	No. 1 engine mount bracket B (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
