Front Oil Seal Replacement: Notes

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove the front splash shield (RH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

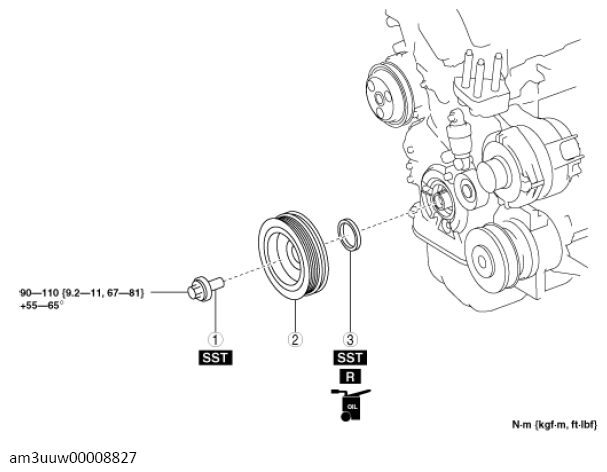

Fig 1: Front Oil Seal Components With Torque Specification

G13149165

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Removal Note .) (See Crankshaft Pulley Lock Bolt Installation Note .)
2	Crankshaft pulley
3	Front oil seal (See Front Oil Seal Removal Note .) (See Front Oil Seal Installation Note .)
