Exhaust CMP Sensor

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the exhaust CMP sensor connector.
  3. Remove the bolt.

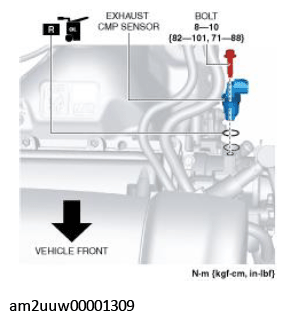

    Fig 1: Exhaust CMP Sensor Bolt With Torque Specification
    G11435587Courtesy of MAZDA MOTORS CORP.
  4. Remove the exhaust CMP sensor.
  5. Install in the reverse order of removal.
