Oil Pressure Switch Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

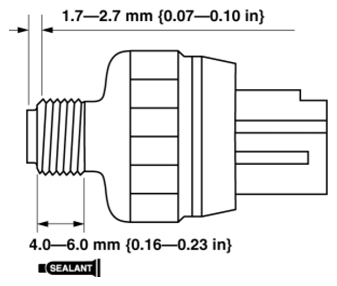

- Verify that there is no sealant between 1.7-2.7 mm {0.07-0.10 in} from the end of the oil pressure switch to prevent a possible operation malfunction.
- When reusing the oil pressure switch, apply silicone sealant (TB1207B or equivalent) to the threads of the oil pressure switch.
Courtesy of MAZDA MOTORS CORP.
CAUTION:- Install the oil pressure switch before the applied sealant starts to harden.
- Install the oil pressure switch.
Tightening Torque
- 12-17 N.m {123-173 kgf.cm, 107-150 in.lbf}
