Wire removal note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the figure.

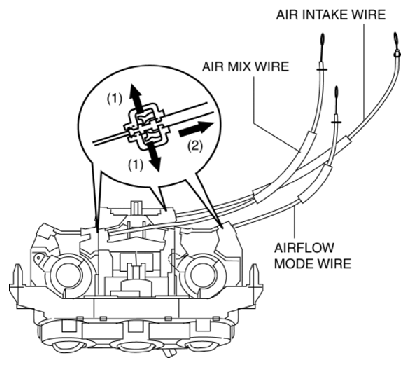

Fig 1: Removing Wires From Climate Control Unit - Recirculate/Fresh Lever Type

Courtesy of MAZDA MOTORS CORP.

Remove in the order indicated in the figure.

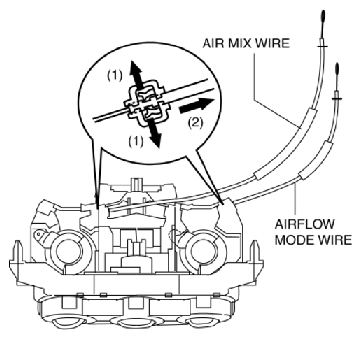

Fig 1: Removing Wires From Climate Control Unit - Recirculate/Fresh Switch Type

Courtesy of MAZDA MOTORS CORP.
