Coolant Reserve Tank Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

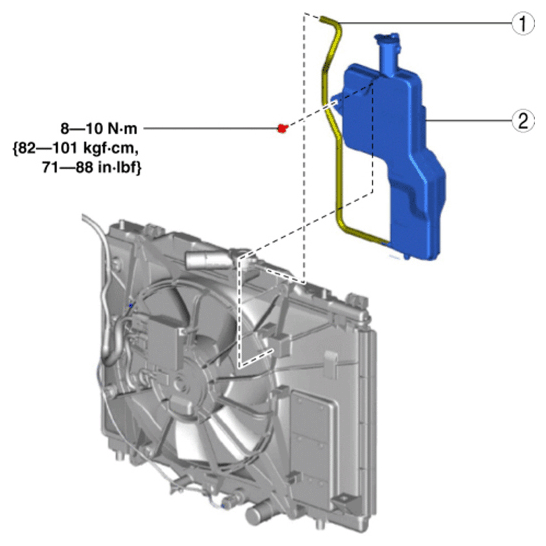

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
COMPONENT DESCRIPTION
| 1 | Hose |
| 2 | Coolant reserve tank (See Coolant Reserve Tank Installation Note .) |
