Evaporative Hose Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Install the evaporative hose as shown in the graphic.

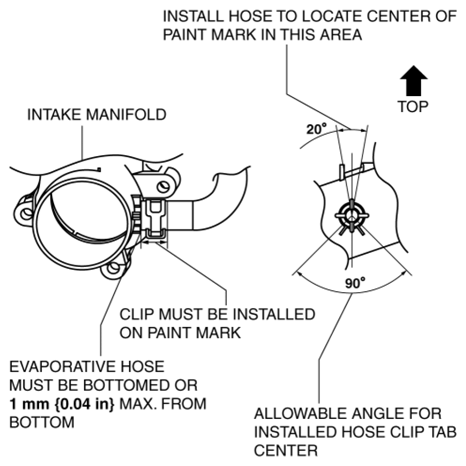

Fig 1: Installing Evaporative Hose

Courtesy of MAZDA MOTORS CORP.
