Fresh-Air Duct Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

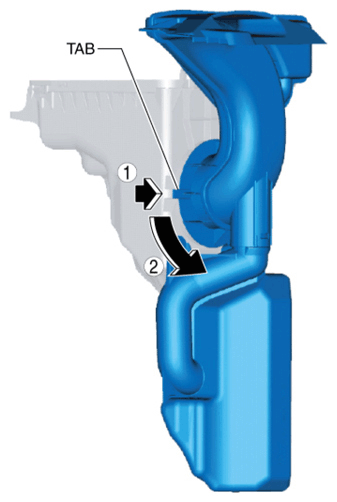

While moving the tabs in the direction shown in the graphic, rotate the fresh air duct.

Fig 1: Rotating Fresh Air Duct
Courtesy of MAZDA MOTORS CORP.
Remove the fresh-air duct.
