Part-side connector

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

The viewing orientation for part-side connectors is from the terminal side.

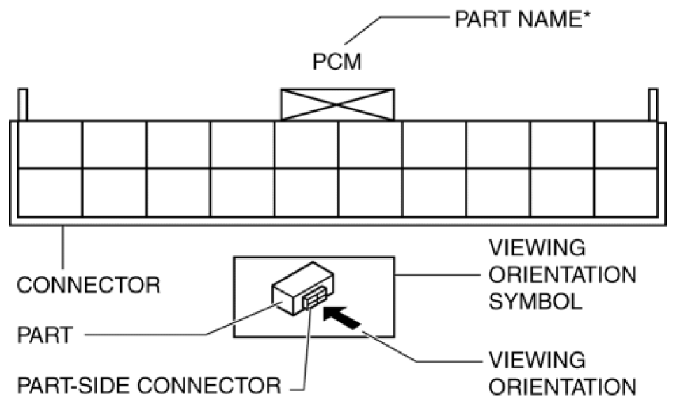

Fig 1: Identifying Part-Side Connector
Courtesy of MAZDA MOTORS CORP.

*: Part names are shown only when there are multiple connector drawings.
