Deflector Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the glass panel.
Rotate a tape-wrapped flathead screwdriver in the direction of the arrow (1) shown in the figure and remove the spring in the direction of the arrow (2) shown in the figure from hooks.
CAUTION:
- If the spring is removed forcefully, hooks located at the spring installation area may be damaged. Carefully remove the spring so as not to damage hooks.

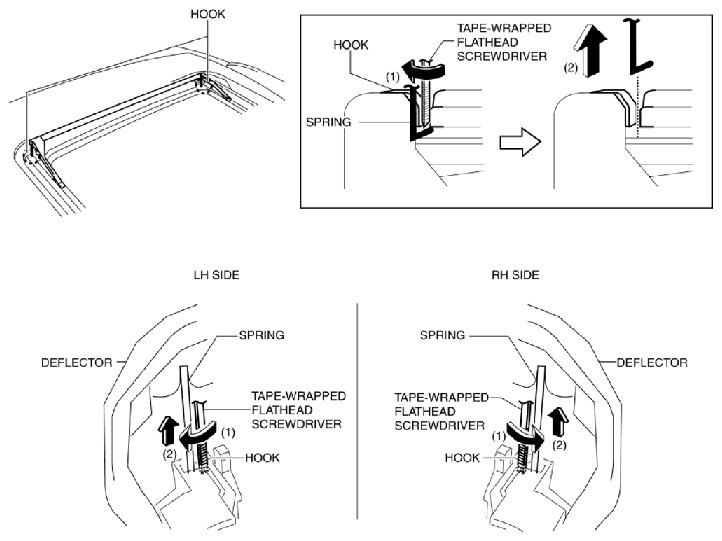

Fig 1: Rotating Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the deflector while lifting it up in the direction of arrow (3) shown in the figure and moving it in the direction of arrow (4).

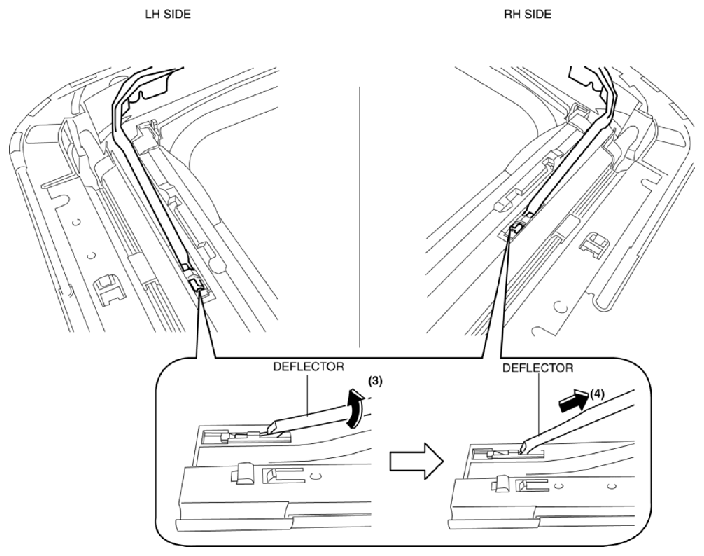

Fig 2: Removing Deflector
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
