Glass Panel Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the sunshade.
Fully close the glass panel.
Remove screws.

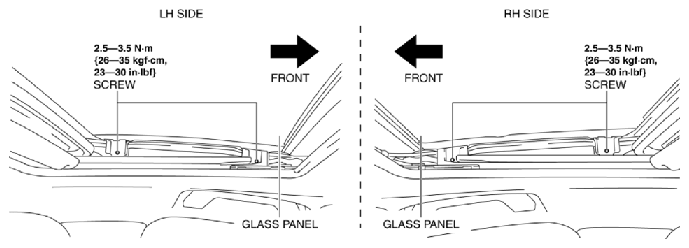

Fig 1: Removing Glass Panel Screws
Courtesy of MAZDA MOTORS CORP.
Remove the glass panel in the direction of the arrow (1) from sunroof unit.

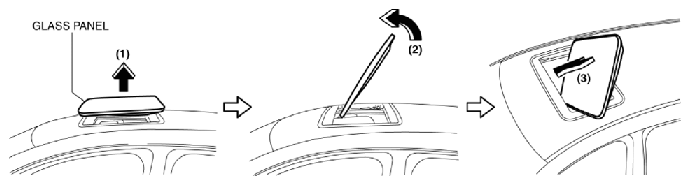

Fig 2: Removing Glass Panel From Sunroof Unit
Courtesy of MAZDA MOTORS CORP.
Move the glass panel in the order of arrows (2) and (3) shown in the figure and remove it from the cabin.
Peel the weatherstrip off the glass panel. (See Weatherstrip Installation Note .)
Install in the reverse order of removal.
