Front Guide Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Perform mark the position shown in the figure for correct positioning.
CAUTION:
- If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.

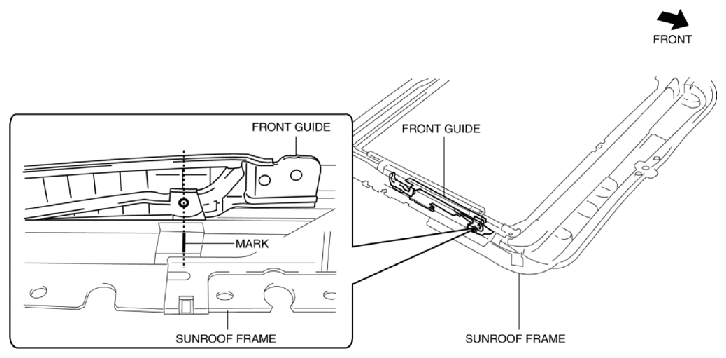

Fig 1: Identifying Front Guide Mark Position
Courtesy of MAZDA MOTORS CORP.
