When not using M-MDS

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Switch the ignition ON (engine off or on).
Using a jumper wire, connect indicator unit terminal G and body ground for 5 s or more.
CAUTION:
- If the terminals are mistakenly connected, vehicle damage or fire could occur. When connecting with the jumper wire, thoroughly verify what terminals are being connected to prevent a miss-connection.
Verify that the following warning/indicator lights are turned on.

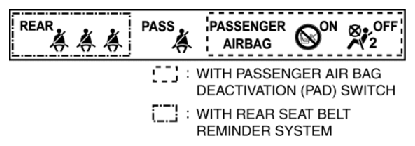

Fig 1: Display - Indicator Unit Warning/Indicator Lights Screen
Courtesy of MAZDA MOTORS CORP.
- If any one of the warning/indicator lights is not displayed, replace the indicator unit. (See INDICATOR UNIT REMOVAL/INSTALLATION .)
