Bracket A Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the screws in the order shown in the figure.

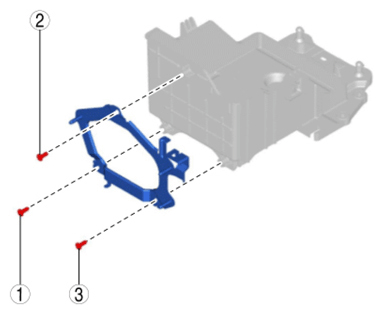

Fig 1: Bracket Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 2.5-3.5 N.m {26-35 kgf.cm, 23-30 in.lbf}
