Assist Handle Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Push the assist handle in the direction of the arrow shown in the figure.

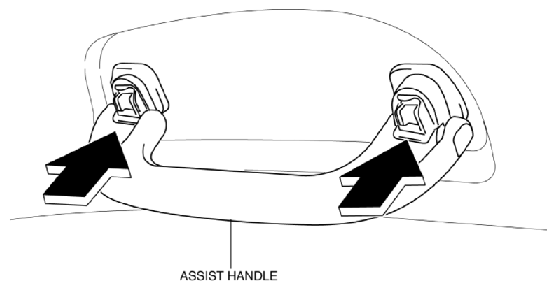

Fig 1: Pushing Assist Handle
Courtesy of ABLE BODY CORP.
Push the assist handle cover assembled to install the assist handle.

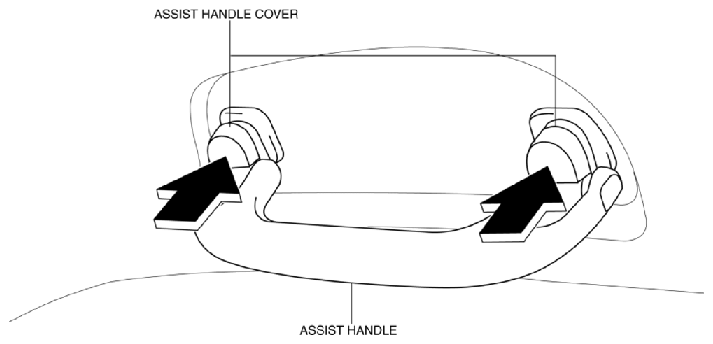

Fig 2: Pushing Assist Handle Cover
Courtesy of ABLE BODY CORP.
