Center Console Tray Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

To prevent scratches or damage, affix protective tape to the position shown in the figure.

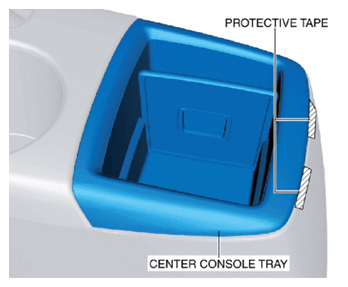

Fig 1: Applying Protective Tape To Center Console Tray
Courtesy of ABLE BODY CORP.
Insert a remover tool into the positions shown in the figure, move it in the directions of arrows (1), and detach clips A from the rear console.

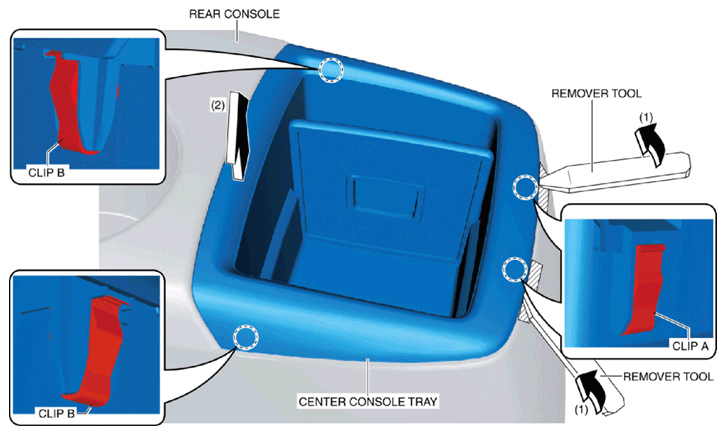

Fig 2: Pulling Center Console Tray
Courtesy of ABLE BODY CORP.
Pull the center console tray in the direction of arrow (2) shown in the figure, detach clips B from the rear console and remove the center console tray.
Install in the reverse order of removal.
