Lower Column Cover

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws.

Fig 1: Identifying Lower Column Cover And Screw
Courtesy of ABLE BODY CORP.
Open the lower column cover in the direction of arrow (1) shown in the figure, move the lower column cover in the direction of arrow (2), and detach the tabs of the light switch and the wiper and washer switch from the lower column cover.

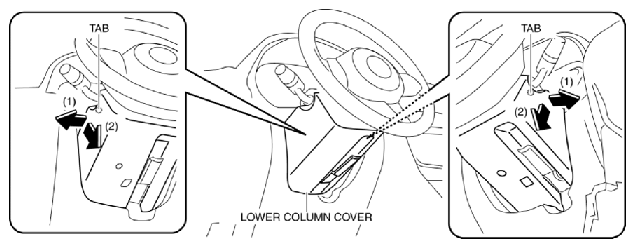

Fig 2: Moving Lower Column Cover
Courtesy of ABLE BODY CORP.
Lower the adjusting lever to the bottommost position.

Fig 3: Identifying Lower Column Cover And Adjusting Lever
Courtesy of ABLE BODY CORP.
CAUTION:
- If the adjuster lever is pulled down to the bottommost position and the lower column cover is removed while the steering wheel is not secured, the lower column cover will interfere with the driver-side lower panel and could cause damage to the lower column cover and driver-side lower panel. Secure the steering wheel when removing the lower column cover.
Move the lower column cover in the direction of the arrow shown in the figure and remove it while pulling out the guide.

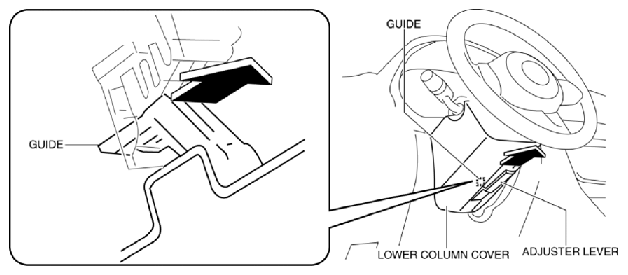

Fig 4: Moving Lower Column Cover
Courtesy of ABLE BODY CORP.
Install in the reverse order of removal.
