Front Scuff Plate Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the inner panel with the front scuff plate pins shown in the figure.

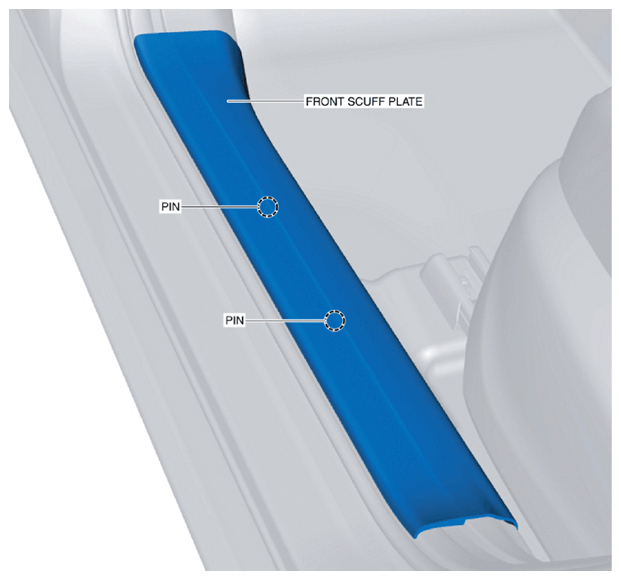

    Fig 1: Identifying Front Scuff Plate And Pins
    G10914792Courtesy of ABLE BODY CORP.
  2. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tabs B to the B-pillar lower trim.

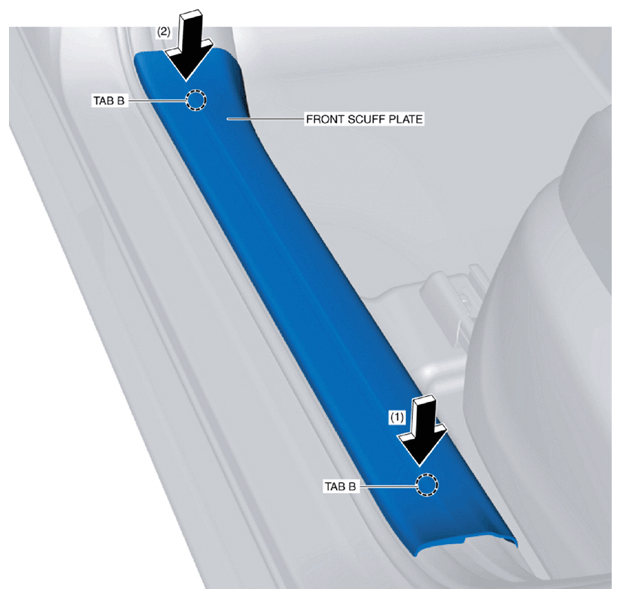

    Fig 2: Pressing Front Scuff Plate
    G10914793Courtesy of ABLE BODY CORP.
  3. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tabs B to the front side trim.
  4. Press the front scuff plate in the direction of the arrows shown in the figure and install the clips to the inner panel.

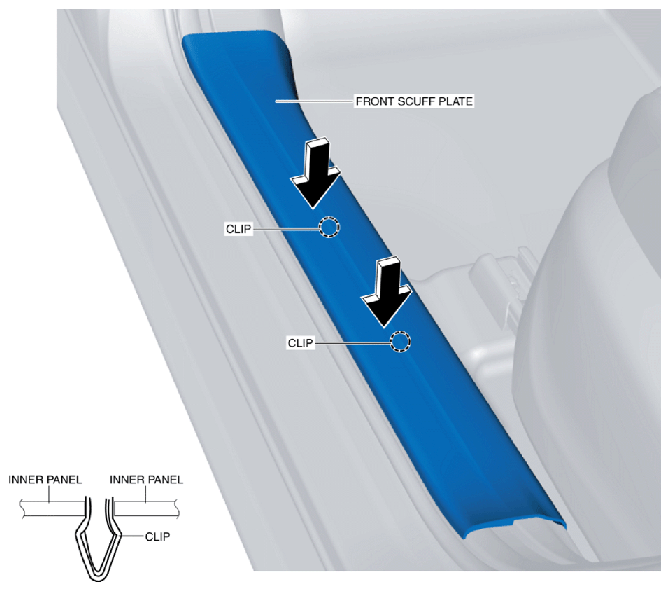

    Fig 3: Installing Clips To Inner Panel
    G10914794Courtesy of ABLE BODY CORP.
  5. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tabs A to the B-pillar lower trim.

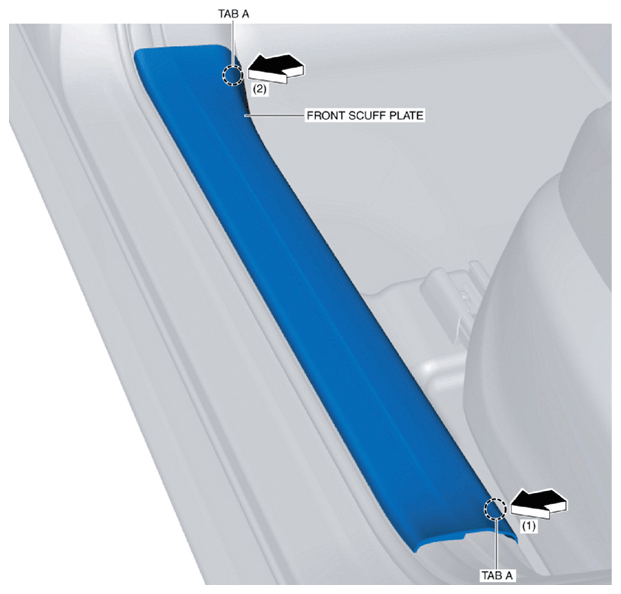

    Fig 4: Installing Tabs A To B-Pillar Lower Trim
    G10914795Courtesy of ABLE BODY CORP.
  6. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tabs A to the front side trim.
