Shift Bezel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

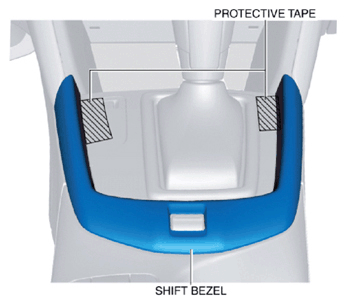

To prevent scratches or damage, affix protective tape to the position shown in the figure.

Fig 1: Applying Protective Tape To Shift Bezel
Courtesy of ABLE BODY CORP.

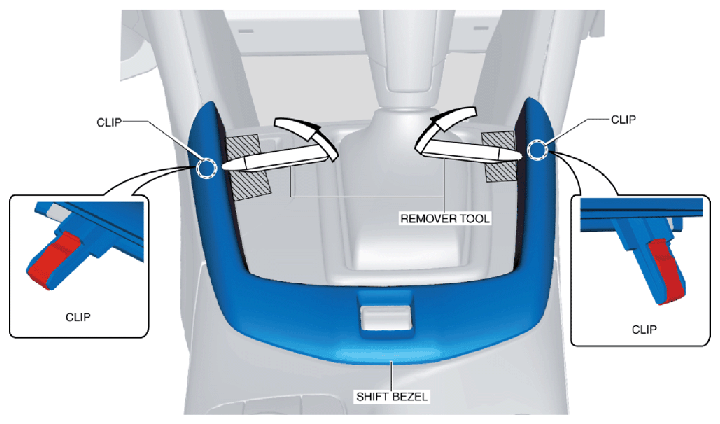

Insert a remover tool into the position shown in the figure, move it in the directions of the arrows and detach the shift panel from the clips.

Fig 2: Detaching Shift Panel From Clips
Courtesy of ABLE BODY CORP.

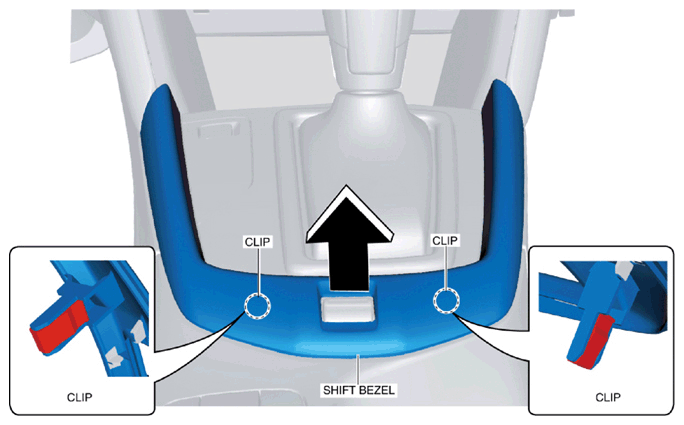

Pull the shift bezel in the direction of the arrow shown in the figure, detach the shift panel from the clips and remove the shift bezel.

Fig 3: Pulling Shift Bezel
Courtesy of ABLE BODY CORP.
Install in the reverse order of removal.
