Felt Replacement Procedure
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Peel off the old felt from the trunk board.
- Peel off the paper backing of the new felt.

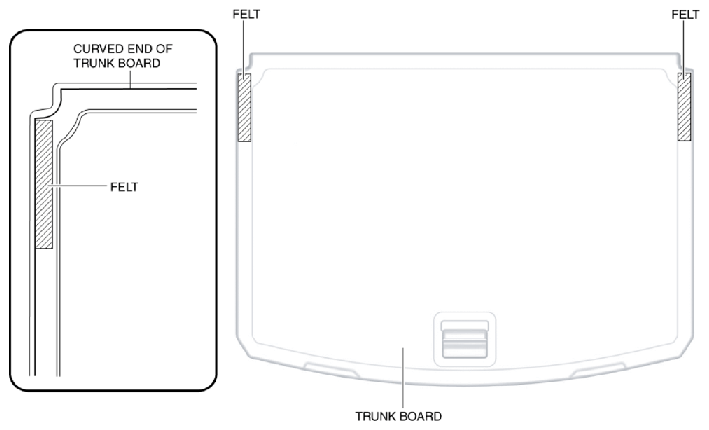

- Adhere the felt to the area shown in the figure.
Courtesy of ABLE BODY CORP.
- Press the felt and attach it to the trunk board by applying pressure.
