Audio Unit Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the audio panel No. 2. (Refer to AUDIO PANEL No. 2 REMOVAL/INSTALLATION .)
Remove the audio panel No. 1. (Refer to AUDIO PANEL No. 1 REMOVAL/INSTALLATION .)
Remove the bolts.

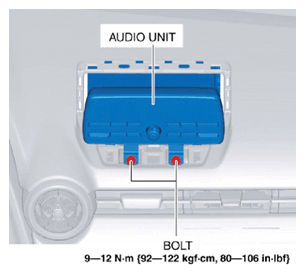

Fig 1: Removing Audio Unit Bolts
Courtesy of MAZDA
Insert the remover tool into the position shown in the figure.

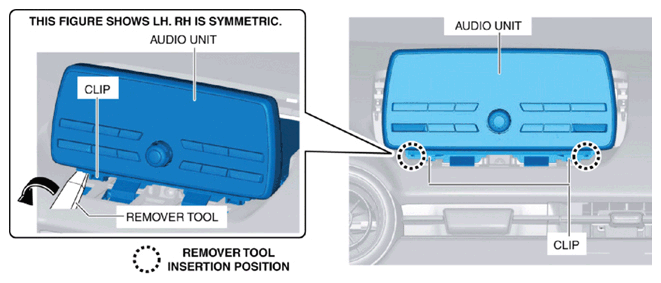

Fig 2: Inserting Remover Tool Into Position
Courtesy of MAZDA
Move the remover tool in the direction of the arrow shown in the figure and detach the audio unit clip from the dashboard.
Pull out the audio unit in the direction of the arrow shown in the figure and disconnect it.

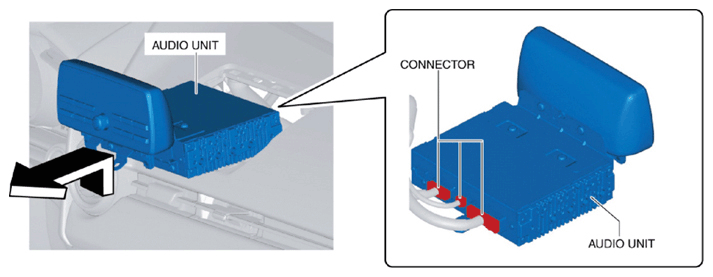

Fig 3: Pulling Out Audio Unit
Courtesy of MAZDA
Remove the audio unit.
Install in the reverse order of removal.
