Bass-Box Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Rear package tray (Refer to REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
- Trunk board (with trunk board) (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
- Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)

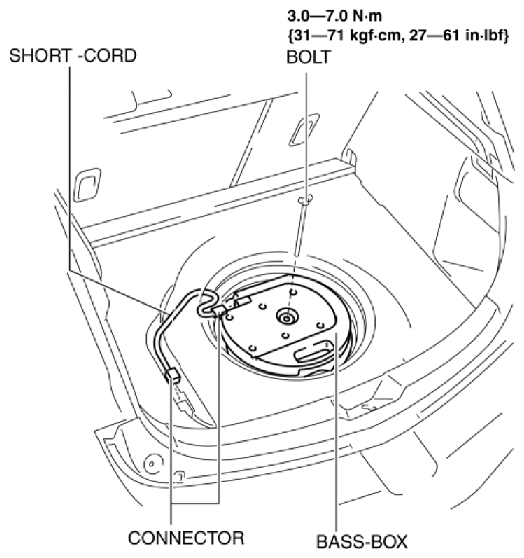

- Disconnect the connector.
- Remove the short-cord.
- Remove the bolt.
- Remove the bass-box.
- Install in the reverse order of removal.
