Center Display Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the audio panel No. 2. (Refer to AUDIO PANEL No. 2 REMOVAL/INSTALLATION .)
  3. Remove the audio panel No. 1. (Refer to AUDIO PANEL No. 1 REMOVAL/INSTALLATION .)
  4. Remove the bolts.
    Fig 1: Removing Center Display Bolts
    G10915114Courtesy of MAZDA
  5. Insert the remover tool into the position shown in the figure.

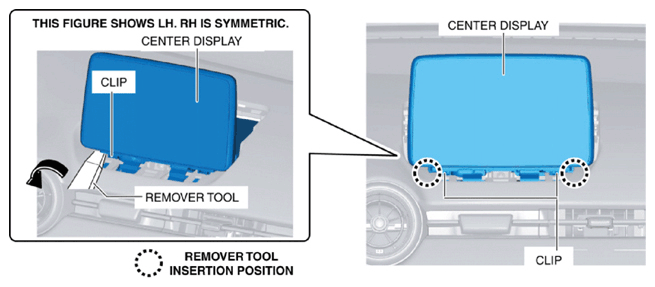

    Fig 2: Inserting Remover Tool Into Position
    G10915115Courtesy of MAZDA
  6. Move the remover tool in the direction of the arrow shown in the figure and detach the center display clip from the dashboard.
  7. Pull out the center display component in the direction of the arrow shown in the figure and disconnect it.

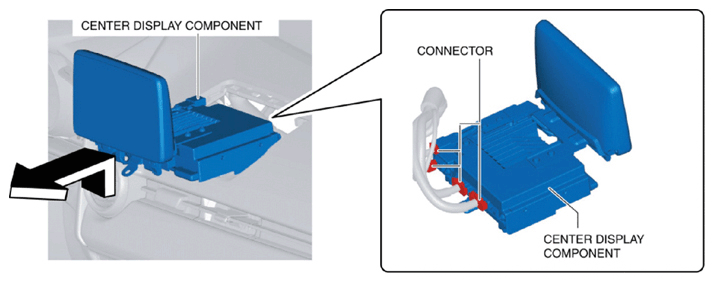

    Fig 3: Pulling Out Center Display Component
    G10915116Courtesy of MAZDA
  8. Remove the center display component.
  9. Remove the connectivity master unit (CMU). (Refer to CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  10. Install in the reverse order of removal.
