Front Inner Handle

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the power window main switch. (Refer to POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the door lock knob cable and the inner handle cable from the front inner handle.

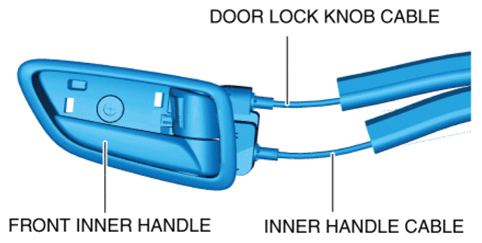

    Fig 1: Disconnecting Door Lock Knob Cable And Inner Handle Cable From Front Inner Handle
    G10914323Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
