Pattern 1

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

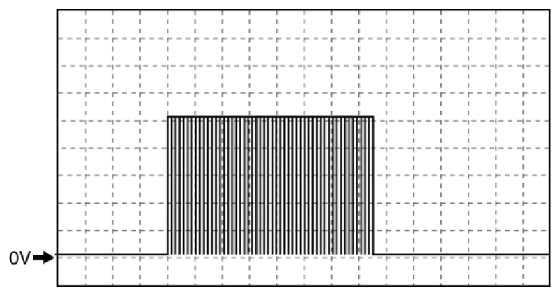

Fig 1: LF Control Unit Oscilloscope Pattern 1
G10914425Courtesy of MAZDA MOTORS CORP.
