Liftgate Lock Actuator Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Liftgate upper trim (Refer to LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
2. Liftgate side trim (Refer to LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
3. Liftgate recess (Refer to LIFTGATE RECESS REMOVAL/INSTALLATION .)
4. Liftgate lower trim (Refer to LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
Liftgate latch and lock actuator. (Refer to LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
Press in the latch lever of the liftgate latch and lock actuator using a flathead screwdriver, and set it to the latched condition.

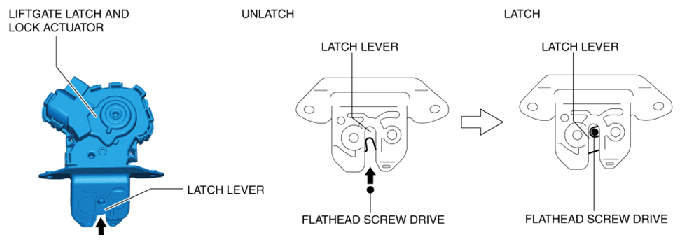

Fig 1: Pressing Latch Lever Of Liftgate Latch And Lock Actuator Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Connect terminal A to the positive battery voltage, connect terminal B to the ground, and verify that the latch lever is released and the condition changes to the unlatch condition.

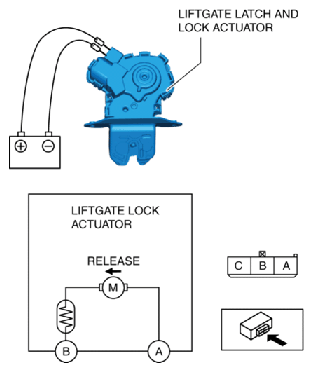

Fig 2: Connecting Terminal A To Positive Battery Voltage
Courtesy of MAZDA MOTORS CORP.
- If the operation cannot be verified, replace the liftgate latch and lock actuator. (Refer to LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
