Liftgate Opener Switch Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the service hole cover.

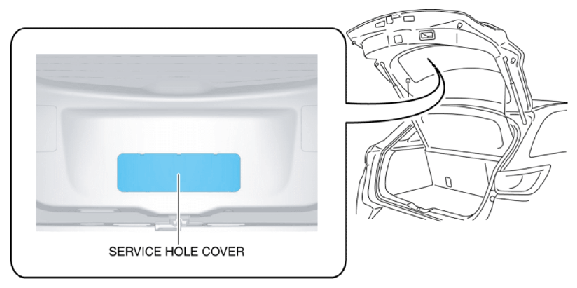

    Fig 1: Removing Service Hole Cover
    G10914410Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector.

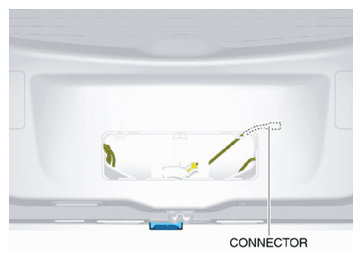

    Fig 2: Disconnecting Connector
    G10914411Courtesy of MAZDA MOTORS CORP.
  4. While pressing the liftgate opener switch tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the liftgate opener switch tab from the liftgate.

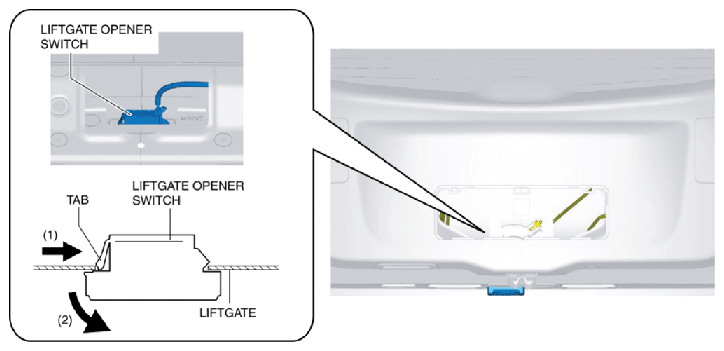

    Fig 3: Pressing Liftgate Opener Switch Tab
    G10914412Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate opener switch from the liftgate.
  6. Install in the reverse order of removal.
