Front Splash Shield Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screw and fasteners.

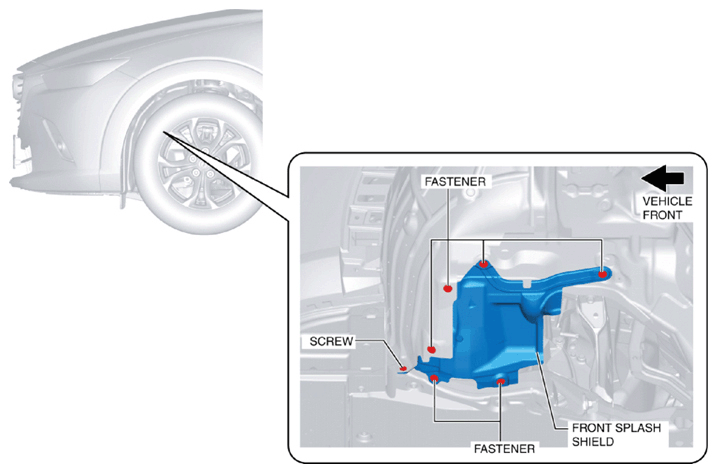

Fig 1: Removing Front Splash Shield Screw And Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the front splash shield.
Install in the reverse order of removal.
