Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

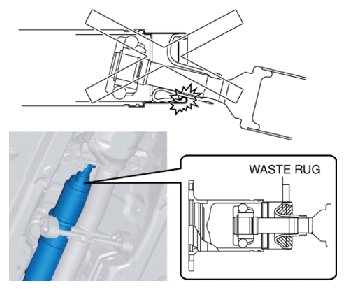

If the constant velocity joint is bent during propeller shaft removal/installation or transportation after servicing, the constant velocity joint boot may contact the metallic cover and the boot may be damaged. Insert a rag between the boot and the metallic cover before servicing to protect the boot

Fig 1: Caution For Installing Propeller Shaft

Courtesy of MAZDA MOTORS CORP.

Remove the insulator. (Refer to EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the tunnel member. (Refer to EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)

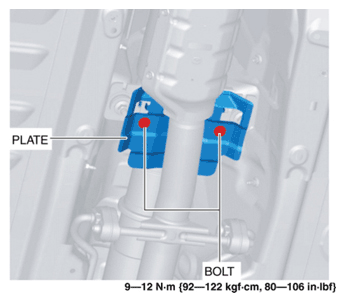

Remove the plate. (Refer to PLATE INSTALLATION NOTE .)

Fig 2: Plate Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

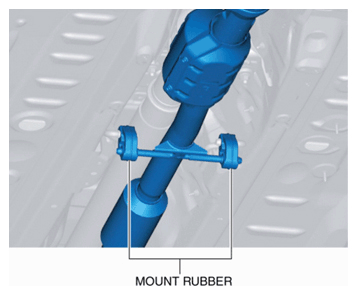

Remove the TWC from the mount rubber.

Fig 3: Mount Rubber TWC Component Location
Courtesy of MAZDA MOTORS CORP.
Disconnect the TWC from the main silencer. (Refer to EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Suspend the TWC using a cable as shown in the graphic.

Fig 4: Installing TWC Using Cable
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the graphic.
Install in the reverse order of removal.
Perform a road test and verify that there is no abnormal vibration or noise.

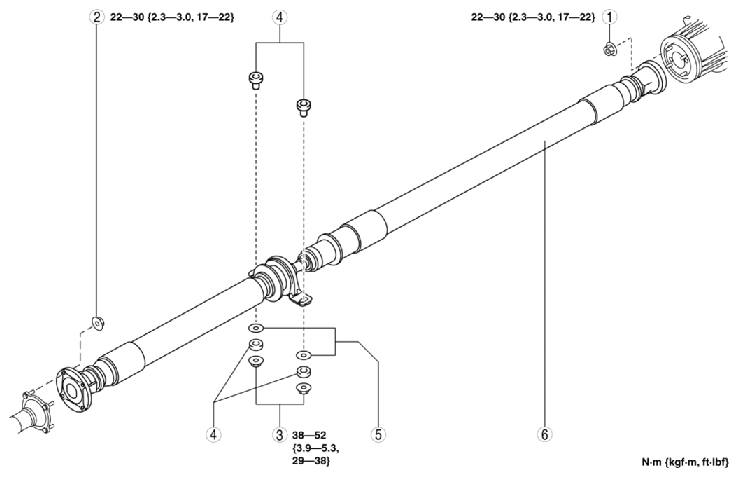

Fig 5: Propeller Shaft Nuts Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Nut (rear)
2	Nut (front)
3	Nut (center bearing support)
4	Bush, spacer
5	Washer
6	Propeller shaft (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
