A/C Compressor Pulley Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Wrap protective tape around the tabs of the SST (49 0839 425C) so that the A/C compressor pulley is not scratched.

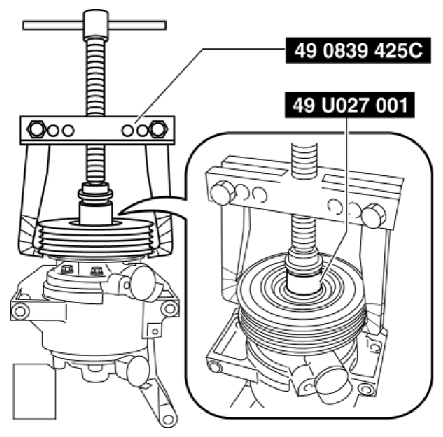

Remove the A/C compressor pulley using the SSTs (49 0839 425C, 49 U027 001) .

Fig 1: Removing A/C Compressor Pulley Using SST (49 0839 425C, 49 U027 001)
Courtesy of MAZDA MOTORS CORP.

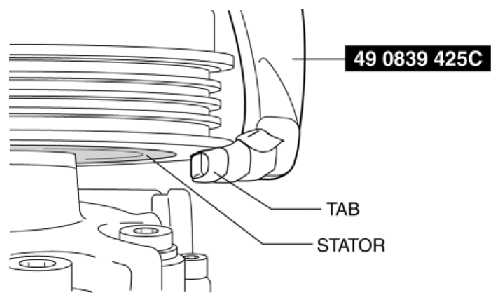

CAUTION:
- If the A/C compressor pulley is removed with the SST (49 0839 425C) tabs attached to the stator, the stator could be damaged. When using the SST (49 0839 425C), make sure the tabs are not attached.
Fig 2: Removing A/C Compressor Pulley With SST (49 0839 425C)
Courtesy of MAZDA MOTORS CORP.
