DTC B1079-13: Hood Latch Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
Hood latch switch circuit malfunction |
| Detection condition |
- BCM detects an open circuit in hood latch switch circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Hood latch switch connector or terminal malfunction

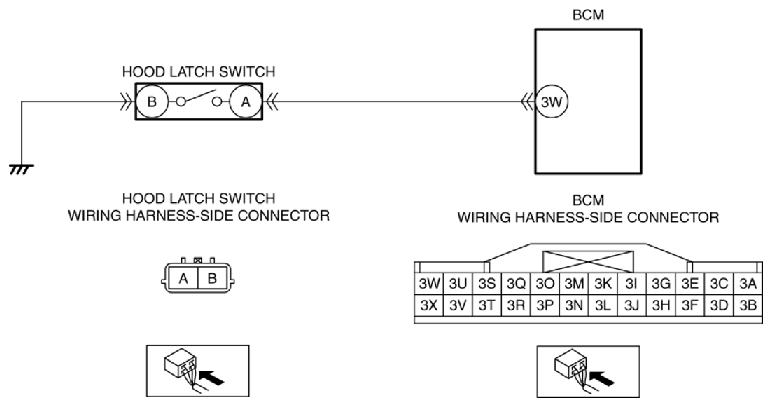

- Open circuit in wiring harness between hood latch switch terminal B and body ground
- Hood latch switch malfunction
- BCM connector or terminal malfunction
- Open circuit in wiring harness between hood latch switch terminal A and BCM terminal 3W
- BCM malfunction
|
|
|
