Tie-Rod End Replacement

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the snap pin from the tie-rod end.

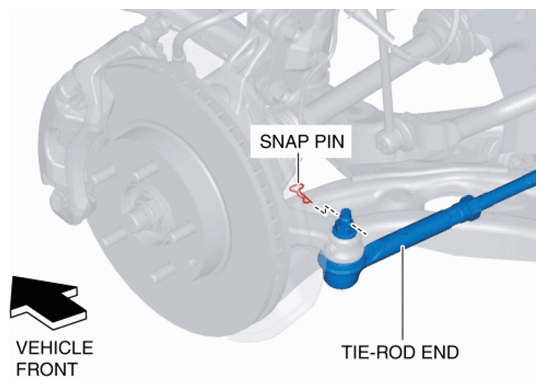

Fig 1: Removing Snap Pin From Tie-Rod End
Courtesy of MAZDA MOTORS CORP.

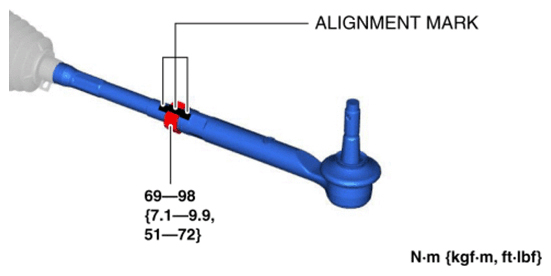

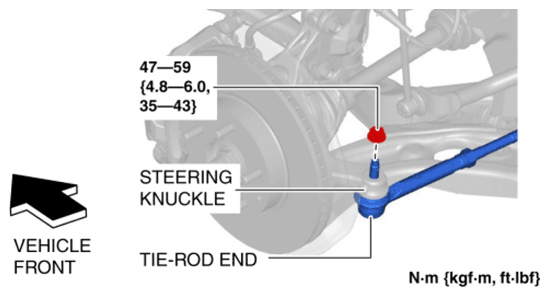

Loosen the locknut of the tie-rod end.

Fig 2: Loosening Locknut Of Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Using the SST , disconnect the steering knuckle and tie-rod end.

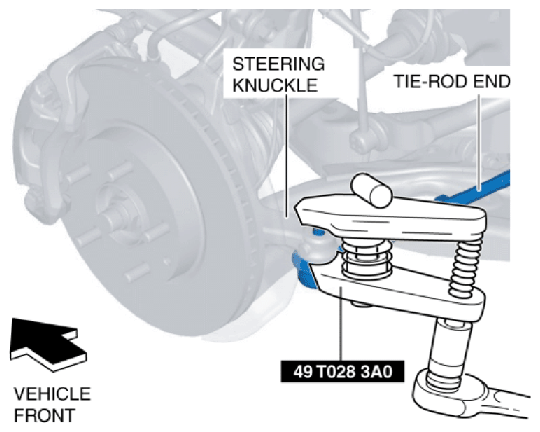

Fig 3: Disconnecting Steering Knuckle And Tie-Rod End
Courtesy of MAZDA MOTORS CORP.

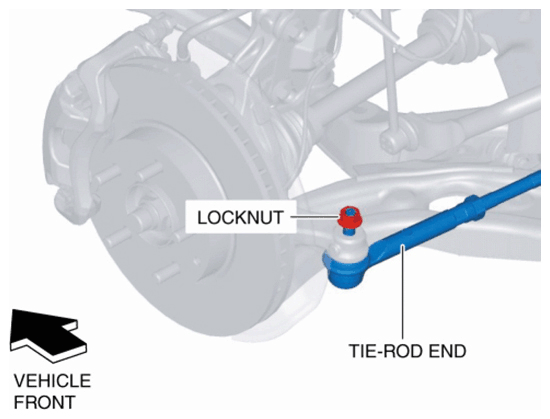

Remove the locknut from the tie-rod end.

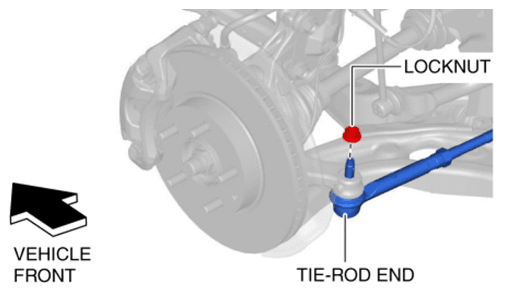

Fig 4: Removing Locknut From Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Place alignment marks as shown in the figure for proper installation.

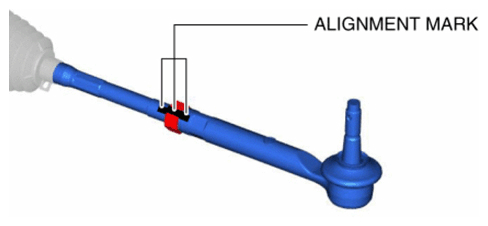

Fig 5: Placing Alignment Marks On Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Remove the tie-rod end.

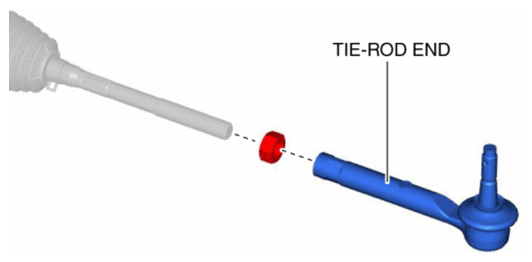

Fig 6: Removing Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

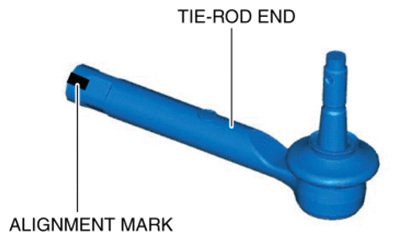

Fig 7: Placing Alignment Marks On Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

Fig 8: Identifying Alignment Marks On Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Verify that dimension A shown in the figure is within the specification.

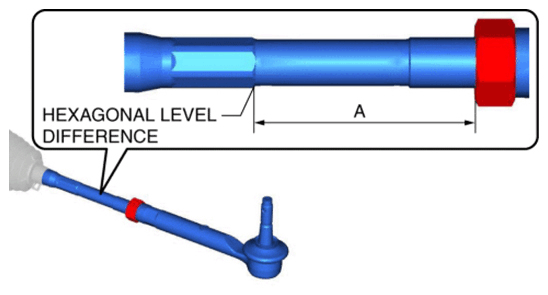

Fig 9: Identifying Tie-Rod End Dimension
Courtesy of MAZDA MOTORS CORP.

Specification
- 54-67 mm {2.2-2.6 in}
- If not within the specification, make adjustments so that dimension A is within the specification.
Install the tie-rod end to the steering knuckle.

Fig 10: Installing Tie-Rod End To Steering Knuckle
Courtesy of MAZDA MOTORS CORP.
Install a new snap pin to the tie-rod end.

Fig 11: Installing Snap Pin To Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)
