Wiper/Washer System Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

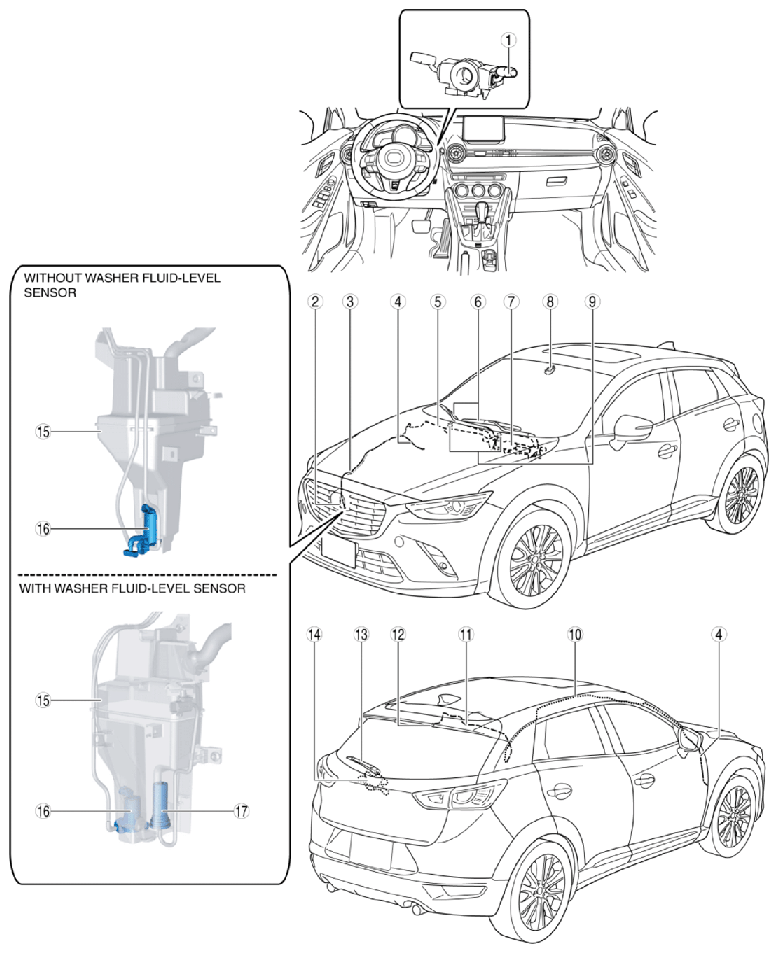

Fig 1: Wiper/Washer System Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .) (See WIPER AND WASHER SWITCH INSPECTION .)
2	Windshield washer hose A (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
3	Rear washer hose A (See REAR WASHER HOSE REMOVAL/INSTALLATION .)
4	Rear washer hose B (See REAR WASHER HOSE REMOVAL/INSTALLATION .)
5	Windshield washer hose B (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
6	Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .)
7	Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .) (See WINDSHIELD WIPER MOTOR INSPECTION .)
8	Rain sensor (with auto wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .) (See RAIN SENSOR INITIALIZATION SETTING .) (See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
9	Windshield washer nozzle (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .) (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
10	Rear washer hose C (See REAR WASHER HOSE REMOVAL/INSTALLATION .)
11	Rear washer hose D (See REAR WASHER HOSE REMOVAL/INSTALLATION .)
12	Rear washer nozzle (See REAR WASHER NOZZLE REMOVAL/INSTALLATION .) (See REAR WASHER NOZZLE ADJUSTMENT .)
13	Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .) (See REAR WIPER ARM AND BLADE ADJUSTMENT .)
14	Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION .) (See REAR WIPER MOTOR INSPECTION .)
15	Washer tank (See WASHER TANK REMOVAL/INSTALLATION .)
16	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION .) (See WASHER MOTOR INSPECTION .)
17	Washer fluid-level sensor (with washer fluid-level sensor) (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .) (See WASHER FLUID-LEVEL SENSOR INSPECTION .)
