Exhaust Manifold Bracket Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Temporarily tighten the exhaust manifold bracket installation bolts.

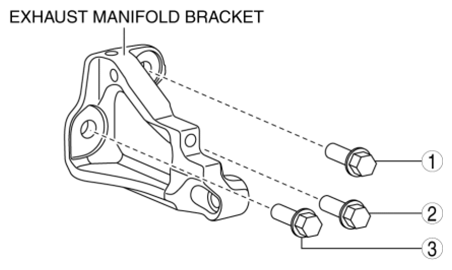

- Tighten the bolt in the order shown in the figure.
Courtesy of MAZDA
Tightening torque
- 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
